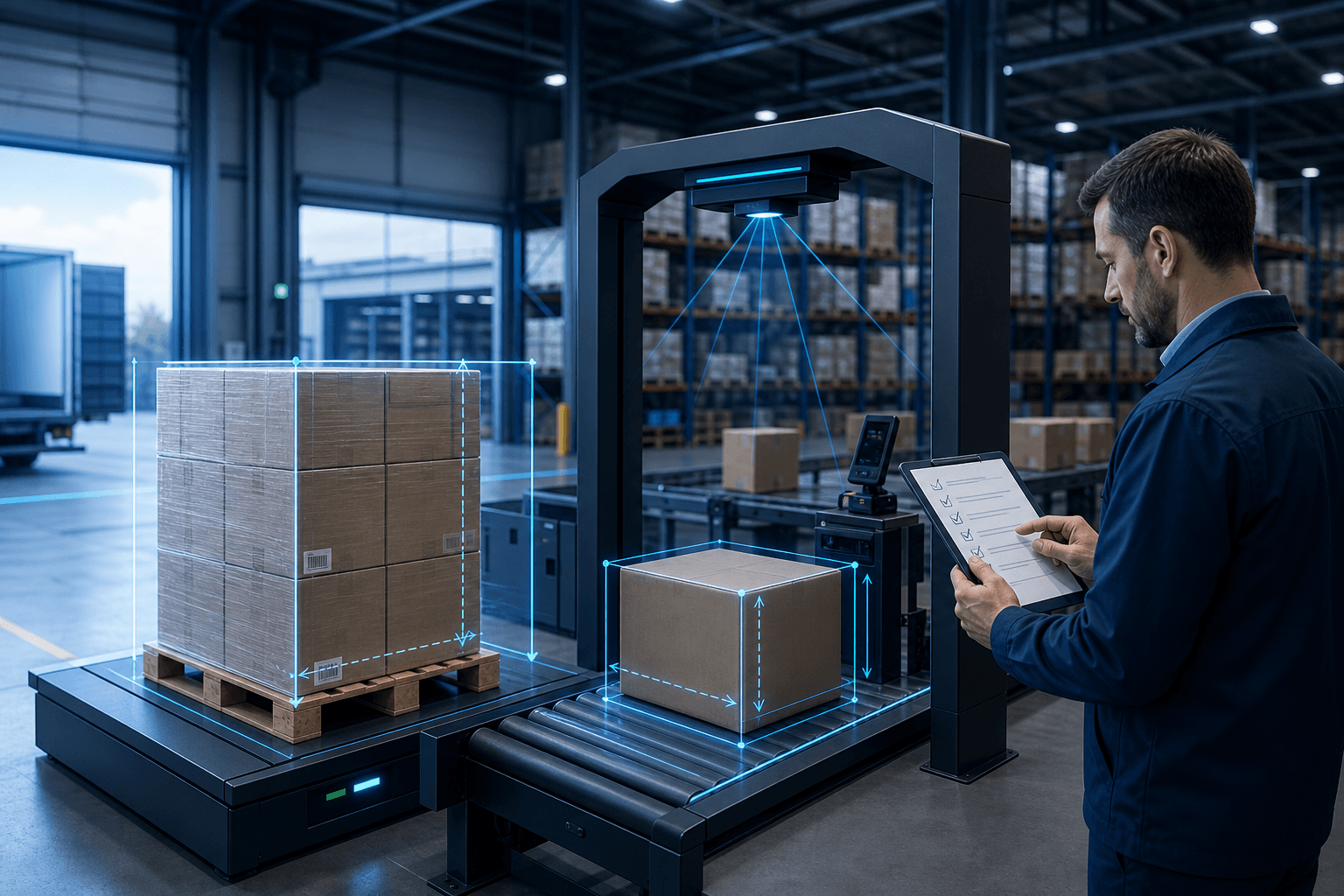

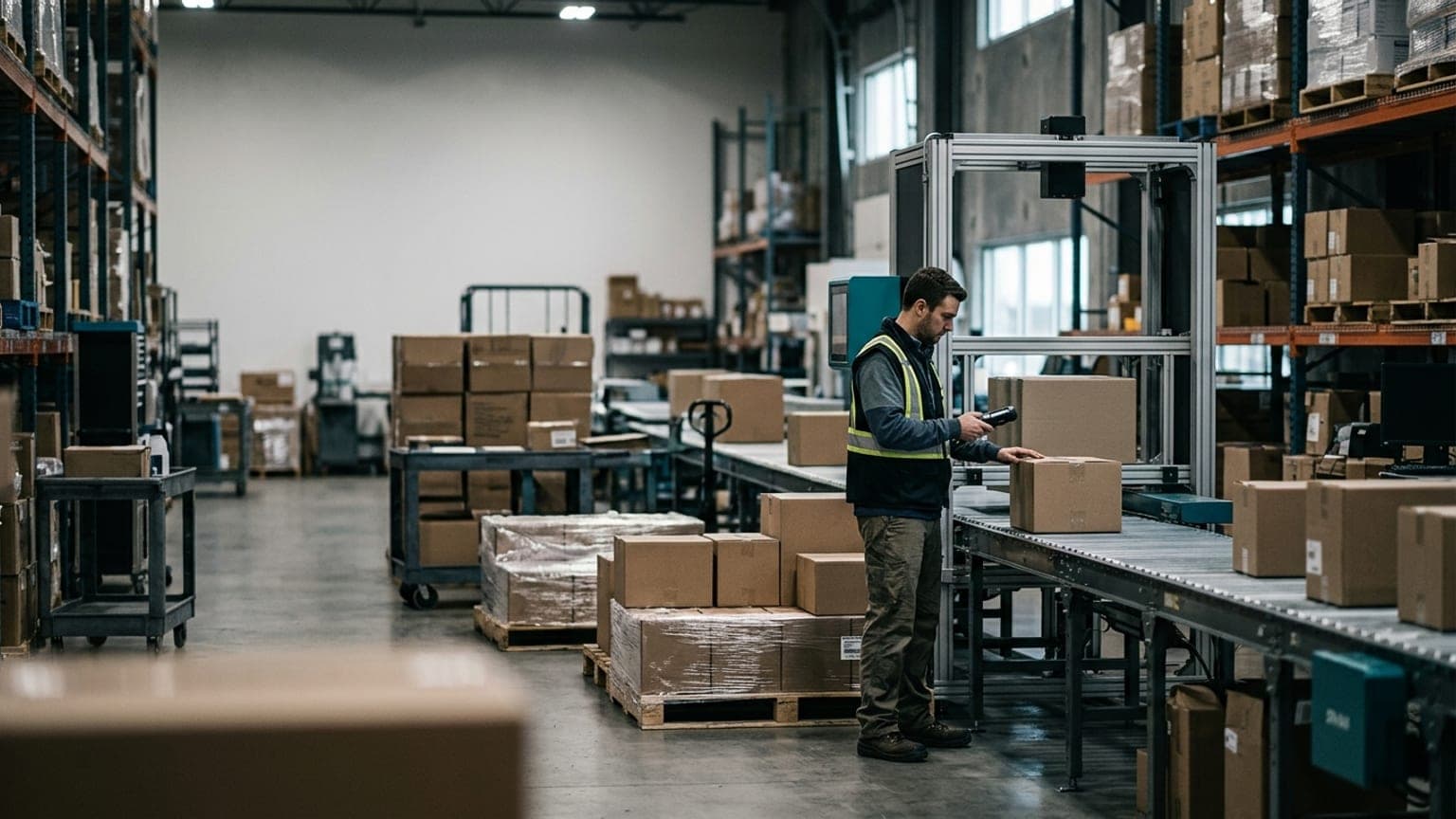

Warehouse Dimensioning System RFP Requirements: What Buyers Should Ask For

Warehouse dimensioning system RFP requirements should do more than ask vendors for a device, a price, and an accuracy statement.

The RFP should describe the warehouse decision the system must improve. Is the team trying to prevent carrier billing adjustments? Create defensible 3PL invoices? Clean up carton master data? Capture pallet evidence at receiving? Protect parcel throughput before manifest close? Each answer changes the required hardware, data model, integration, exception handling, support plan, and acceptance test.

For warehouse buyers, the best RFPs make vendors respond to the real operating environment instead of a generic feature checklist. Here is a practical way to write requirements for a parcel dimensioner, freight dimensioner, or multi-point dimensioning workflow.

Start the RFP with the operating workflow

Before asking for specifications, define the control point.

A dimensioning system placed before parcel rating has different requirements from one placed at inbound pallet receiving. A system used for customer billing needs stronger record retention than one used only for slotting analysis. A station that supports peak outbound volume needs a different throughput standard than a master data cleanup station used by a small project team.

Useful workflow scopes include:

• outbound parcel measurement before rate shopping or label creation
• parcel audit before manifest close or carrier pickup
• inbound pallet or freight measurement before putaway release
• freight inspection for overhang, damage, reclass, or billing disputes
• SKU, carton, case, or pallet master data capture
• 3PL customer billing for storage, handling, oversized items, or pass-through freight cost
• exception workflows that need images, timestamps, and supervisor review

The RFP should state the primary use case in operational language:

"The system must capture dimensions, weight, images, and shipment identifiers for outbound parcels before manifest close so finance can audit carrier adjustments and operations can correct exceptions before pickup."

That statement gives vendors something concrete to design against. It also prevents apples-to-oranges proposals where one response assumes a simple manual station and another assumes a fully integrated workflow.

Require a complete measurement record

Many RFPs ask for measurement accuracy but do not define the record that must be created.

That is a problem because the commercial value often depends on evidence, not only measurements. If a carrier adjustment, customer invoice dispute, damaged freight claim, or master data correction happens later, the warehouse needs to retrieve the record and trust it.

Define the required fields:

• length, width, height, weight, and unit of measure
• shipment, order, pallet, license plate, carton, SKU, customer, PO, or ASN identifier
• date, time, station, operator, device, and site
• image evidence when needed for freight condition, overhang, label visibility, or audit review
• confidence status, successful capture status, or reason for failed measurement
• manual override fields with user, reason, and timestamp
• exportable record for finance, operations, customer service, claims, or analytics

If images matter, say how they will be used. "Image capture" can mean a simple photo saved locally, or it can mean searchable evidence tied to a shipment record for months. Those are different requirements.

A stronger RFP requirement is:

"Each measurement must create a searchable record tied to the scanned shipment identifier, including dimensions, weight, timestamp, station ID, image evidence, and exception status, with retrieval available for billing and dispute research."

For a deeper data model, use a dimensioning data requirements exercise before finalizing the RFP.

Define integration by timing and ownership

Do not ask only whether the system integrates with the WMS, TMS, ERP, shipping platform, or billing system.

Ask when the data must move, what decision it supports, and who owns exceptions when the record does not match.

Important integration requirements include:

• Source of truth: Which system provides order, shipment, SKU, pallet, customer, or vendor context?
• Identifier flow: Is the identifier scanned by an operator, passed from another system, printed on a label, or created at the station?
• Timing: Does data need to be available before rating, before label print, before manifest close, before putaway, or before invoicing?
• Direction: Is the integration one-way export, two-way validation, real-time API, batch file, or reporting feed?
• Retry logic: What happens if the network, API, label scan, or destination system fails?
• Exception ownership: Who reviews unmatched records, duplicate scans, wrong identifiers, missing dimensions, or failed updates?
• Retention: How long must the data remain searchable and exportable?

These details shape implementation cost. A real-time shipping workflow with rating decisions and exception holds is more complex than a nightly export for analysis. A 3PL billing workflow may require customer-level permissions, contract context, and image retrieval. A receiving workflow may need ASN, PO, vendor, and license plate matching.

If the RFP does not define timing and ownership, vendors will fill the gaps with assumptions. Those assumptions often become change orders later.

Make exception handling part of the requirement

Warehouses do not operate on perfect examples.

The RFP should describe messy freight and parcel conditions because those are the moments where the system either becomes trusted or gets bypassed.

Include test scenarios such as:

• unreadable or missing barcode
• damaged carton, crushed corner, torn wrap, or unstable pallet
• freight overhang or irregular shape
• carton or pallet outside the measurable range
• duplicate shipment scan
• mismatch between expected and captured weight or dimensions
• failed image capture, failed measurement, or network timeout
• manual correction by an authorized user
• remeasurement after repack, consolidation, or inspection

For each exception, define the expected system behavior. Should the record be held for supervisor review? Should the operator choose a reason code? Should the shipment be prevented from manifest close? Should the record still save images and failed-capture details?

Good RFP language sounds like this:

"The system must route failed measurements and identifier mismatches to a configurable exception status, preserve the attempted record, and allow authorized users to correct or approve the record with an audit trail."

That requirement is more useful than a generic "must handle exceptions" line because it defines the control, the evidence, and the accountability.

Ask for throughput in warehouse terms

Throughput requirements should match the control point, not a lab demo.

For parcel shipping, buyers may need parcels per minute, average capture time, queue impact, and performance during peak waves. For pallet receiving, the better metric may be pallets per hour without blocking dock flow. For master data capture, the constraint may be operator handling time and record completeness rather than maximum speed.

Define:

• expected daily, hourly, and peak-window volume
• normal package, carton, or pallet profile
• largest and smallest measurable item
• required operator steps per transaction
• whether freight is moving, stationary, forklift-handled, conveyor-fed, or manually placed
• acceptable queue time at the control point
• expected capture rate for eligible items
• planned staffing model by shift

Avoid requiring the fastest possible device if the real bottleneck is scanning, exception review, label printing, forklift movement, or system lookup. The RFP should ask vendors to explain the whole transaction, not only the measurement moment.

This is where buyers can connect the RFP to warehouse labor standards for automation pilots. If the proposal claims labor savings, the transaction steps should support the claim.

Use acceptance criteria before approving rollout

The RFP should define how the warehouse will decide whether the system works.

Acceptance criteria may include:

• successful capture rate for eligible parcels, cartons, pallets, or freight
• measurement accuracy under agreed operating conditions
• end-to-end transaction time by workflow
• percentage of records matched to the correct identifier
• exception reasons captured and routed correctly
• image evidence available for audit retrieval
• integration success rate and retry handling
• reporting export usable by operations, finance, or customer service
• operator training completed by shift
• support response expectations documented

For a pilot, avoid vague pass/fail language. Use thresholds that make the rollout decision clear:

"During acceptance testing, at least 95% of eligible outbound parcels must produce a complete measurement record tied to the shipment identifier, with exceptions routed to review and no unresolved blocker to manifest close."

The exact threshold depends on the workflow, but the principle is consistent: the buyer should know what evidence proves readiness before the system expands.

Include support, calibration, and change management

Dimensioning systems touch operations, IT, finance, and sometimes customer-facing billing. The RFP should require a support model that reflects that cross-functional impact.

Ask vendors to describe:

• implementation roles for vendor, operations, IT, and project owner
• calibration or certification requirements where applicable
• preventive maintenance and software update process
• support hours, response times, escalation path, and spare parts plan
• training materials for operators, supervisors, and administrators
• reporting setup and admin permissions
• process for adding stations, sites, users, carriers, customers, or workflows later
• post-go-live measurement of capture rate, exception rate, and avoided rework

Support requirements matter because a dimensioning workflow can fail even when the device works. If users do not know how to handle exceptions, if IT cannot troubleshoot integration failures, or if finance cannot retrieve records, the project value drops.

A useful RFP asks vendors to prove they can support the operating process, not only install equipment.

What a strong RFP makes visible

A strong warehouse dimensioning system RFP should make five things visible:

• the workflow the system must improve
• the records the warehouse needs to trust later
• the integrations and exception paths required for daily use
• the throughput and acceptance criteria that define success
• the support model needed after go-live

That level of detail may feel more demanding than a quick quote request, but it saves time. It gives vendors a fair problem to solve, helps buyers compare responses honestly, and reduces the chance that hidden integration or exception work appears after approval.

Sizelabs helps warehouse teams turn dimensions, weight, images, and identifiers into operational records that support shipping, receiving, billing, claims, and automation decisions. If your team is preparing an RFP, start with the workflow and evidence requirements before comparing devices.

Primary references for the RFP team

• NIST Handbook 44, current edition — commercial device specifications, test procedures, marking requirements, and tolerances.
• NCWM NTEP certificate database — validate the exact certified manufacturer, model, application, and status.
• CISA Software Acquisition Guide — supplier-security questions and acquisition criteria for software due diligence.
• GS1 EDI standards — reference requirements for standardized warehouse, transport, order, delivery, and financial data exchange.
