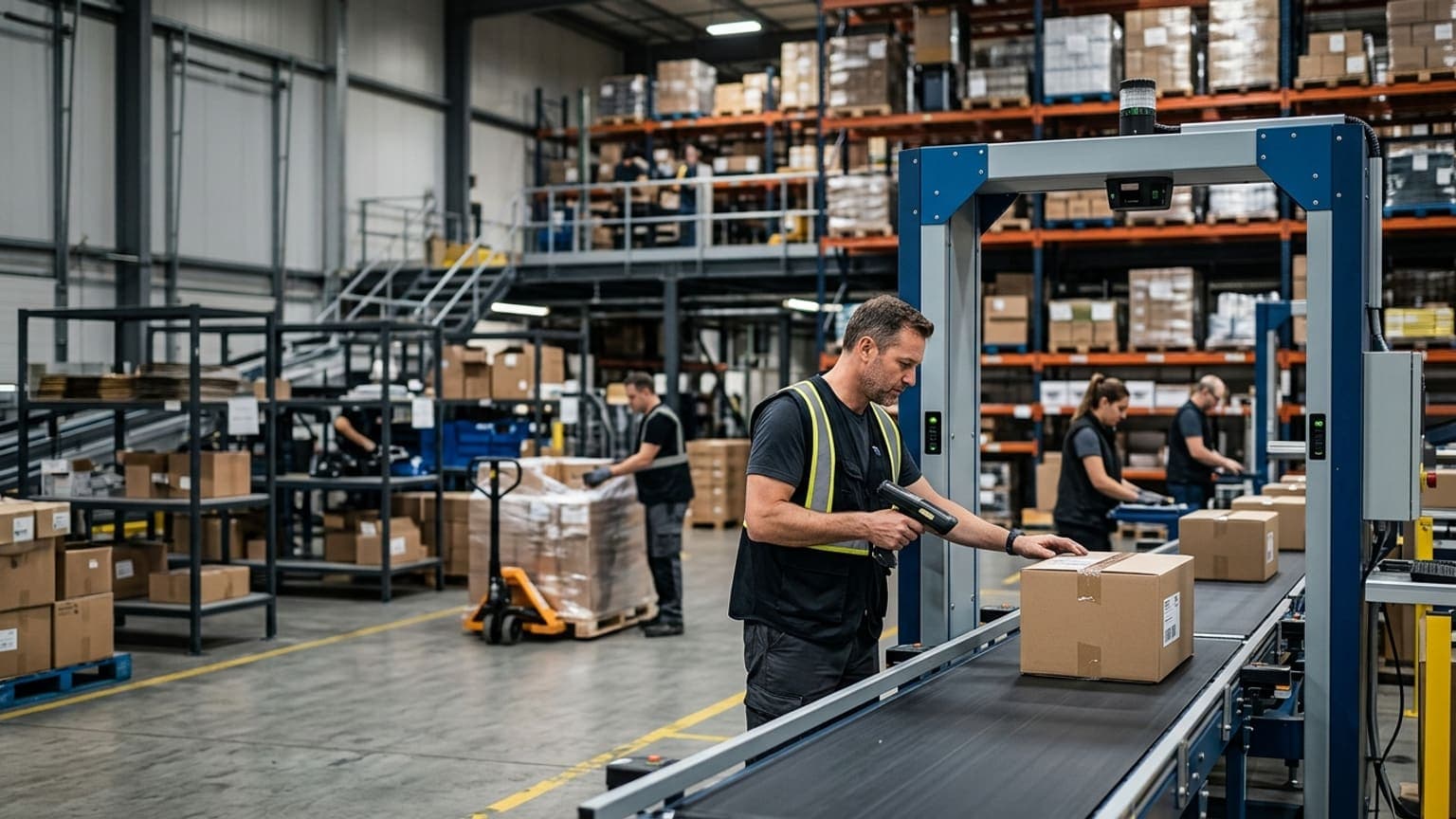

Warehouse Dimensioning Multi-Site Rollout: What Buyers Should Standardize First

Warehouse dimensioning multi-site rollout planning is the work buyers do to make measurement records consistent across buildings without pretending every warehouse operates the same way.

That distinction matters. A first site can succeed because the project team is close, the freight mix is familiar, and exceptions are handled by people who know the operation. The second, third, and fourth sites expose a different problem: inconsistent station setup, different barcode habits, different approval rules, and different interpretations of what a "good" measurement record means.

For buyers, the goal is not to clone one warehouse exactly. The goal is to standardize the parts that protect billing, carrier audit, customer reporting, and data quality while leaving enough room for local workflow reality.

Standardize the record before standardizing the station

Many rollout plans start with equipment placement. That is important, but it should not be the first standard.

The first standard is the measurement record every site must produce.

Define the minimum record clearly:

• length, width, and height
• weight when weight is in scope
• unit of measure
• item, carton, shipment, pallet, license plate, order, customer, or carrier identifier
• site, station, and device
• operator or capture source
• timestamp
• image evidence when required
• approval status
• exception reason code when applicable
• downstream sync status
• correction history for manual edits

This creates one language for the rollout. A parcel station in one building and a pallet station in another may look different, but the business record should still tell finance, transportation, operations, and customer service what was measured, where, when, by whom, and whether it can be trusted.

If each site invents its own fields, the rollout becomes difficult to manage. Reporting breaks. Support cannot compare defects. Billing teams argue about which record is valid. Carrier disputes take longer because evidence is stored differently by building.

For deeper data control, connect the standard record to your warehouse dimensioning data governance model before scaling beyond the pilot.

Decide what must be identical across sites

A strong rollout separates global standards from local choices.

Some rules should usually be identical:

• required identifiers before measurement
• approved units of measure
• minimum evidence for billing or carrier audit
• when a record can update WMS, TMS, billing, or reporting systems
• who can manually edit billable dimensions
• reason codes for rescans, corrections, and rejected captures
• acceptance criteria for each workflow type
• data retention and audit trail requirements

Other details may need site-level variation:

• station location
• staffing model
• queue design
• carrier mix
• carton, pallet, or irregular freight profile
• customer-specific billing rules
• cutoff pressure by shift
• equipment guarding and traffic flow
• supervisor review coverage

The buyer's job is to keep commercial rules consistent while allowing operational execution to fit the building.

For example, two sites may measure pallets at different process points because one handles inbound storage billing and the other handles outbound freight audit. That can be fine if both sites capture the same controlled record fields and use the same approval status logic. It becomes a problem when one site treats overhang as a billable exception and another treats it as a normal scan.

Create a rollout template that includes exceptions

Most rollout templates cover normal flow. Better templates also cover what happens when the scan does not go cleanly.

Each site should document:

• which freight must be measured
• which freight bypasses the station
• where rejected items go
• when operators rescan
• when supervisors review
• what blocks billing, shipping, receiving, or inventory update
• who clears aged exceptions
• how downtime is handled
• which fallback records are allowed

This prevents a common scaling failure. The pilot site looks controlled because the project team solves exceptions manually. Later sites copy the equipment layout but not the exception discipline. Within weeks, operators develop local workarounds: shared spreadsheets, photos in chat threads, manual dimension edits, or untracked override notes.

Buyers should require a repeatable exception playbook. It does not have to make every site identical, but it should make every decision visible.

If the rollout includes outbound release, pair this work with your warehouse dock door release workflow. If it includes returns or damaged freight, connect it to your warehouse returns inspection workflow.

Protect integrations from site-by-site drift

Multi-site rollouts often fail quietly at the integration layer.

One building sends dimensions to the WMS item master. Another sends them to shipment records. A third sends records late because labels are scanned after capture. A fourth allows manual edits that never sync downstream. Each local decision may seem small, but the network ends up with inconsistent data.

Before adding sites, define shared integration controls:

• field mapping by workflow
• required fields before sync
• status values and what each status means
• retry behavior after WMS, TMS, or billing failures
• duplicate scan handling
• record supersession after remeasurement
• master data update rules
• error queues and ownership
• reporting for records not sent downstream

Then test each site against the same integration acceptance criteria. A site should not be considered live just because the station measures correctly. It should be live only when the correct record reaches the correct downstream system at the right point in the workflow.

The WMS dimensioning integration playbook is a useful foundation for these controls because it focuses on how measurements become usable system records.

Assign central and local ownership

A rollout needs two layers of ownership.

Local owners manage execution:

• station housekeeping
• operator training
• rescan behavior
• queue discipline
• first response to device issues
• daily exception review
• site-specific workflow notes

Central owners manage consistency:

• record standards
• permissions and edit rules
• report definitions
• vendor escalation
• integration changes
• audit requirements
• customer or carrier policy alignment
• rollout sequencing

Without local ownership, stations degrade. Without central ownership, every site optimizes for its own pressure and the network loses consistency.

The handoff between those roles should be explicit. For example, a supervisor may own clearing today's exception queue, while a central operations or systems owner reviews whether one site has a rising missing-identifier rate that points to a workflow or integration design problem.

Roll out by readiness, not only by calendar

A calendar-only rollout is risky. Some buildings will be ready faster than others because their process, data, staffing, and physical site are cleaner.

Before each site goes live, confirm:

• the measurement point is correct
• identifiers are available before capture
• power, network, lighting, traffic flow, and equipment protection are ready
• operators and supervisors have completed workflow training
• exception codes and review ownership are configured
• integration mapping has passed test cases
• reporting can separate clean scans, exceptions, corrections, and sync failures
• support escalation is understood by site leadership
• acceptance testing uses real freight from that building

This connects directly to warehouse dimensioning system site readiness. A site that is not physically or operationally ready should not be pulled into the rollout just because the project plan says it is next.

Use KPIs that compare sites without flattening context

Multi-site reporting should show both consistency and local reality.

Track network-level KPIs:

• scans per day by site and workflow
• percent approved automatically
• percent routed to review
• missing identifier rate
• duplicate scan conflict rate
• manual correction rate
• failed image rate
• downstream sync failure rate
• average exception age
• carrier adjustments tied to dimensions or weight
• customer billing disputes tied to measurement records
• support tickets by station and site

Then read those metrics with context. A returns-heavy building may have more exceptions than a clean outbound parcel site. A 3PL building with customer-specific billing rules may need more manual review than a single-client DC. The point is not to force identical numbers. The point is to detect avoidable variation.

If one site has twice the manual correction rate of a comparable site, investigate station placement, barcode sequence, training, product mix, and approval rules. If one site has many sync failures, check whether the local workflow is creating records before the downstream identifier exists.

Make the rollout standard part of the purchase decision

Warehouse dimensioning multi-site rollout planning should start before the first site signs off. The standards buyers set early determine whether the network gets trusted measurement records or a collection of local station workflows.

Standardize the record first. Decide which rules must be common. Document exceptions. Control integrations. Assign local and central ownership. Roll out by readiness. Measure each site in a way that exposes drift without ignoring context.

Sizelabs helps warehouse teams capture dimensions, weight, images, identifiers, timestamps, location, operator context, exception status, and integration-ready records across parcel, pallet, freight, and mixed warehouse workflows. If the plan is to scale beyond one building, the rollout design should protect the network record from day one.
