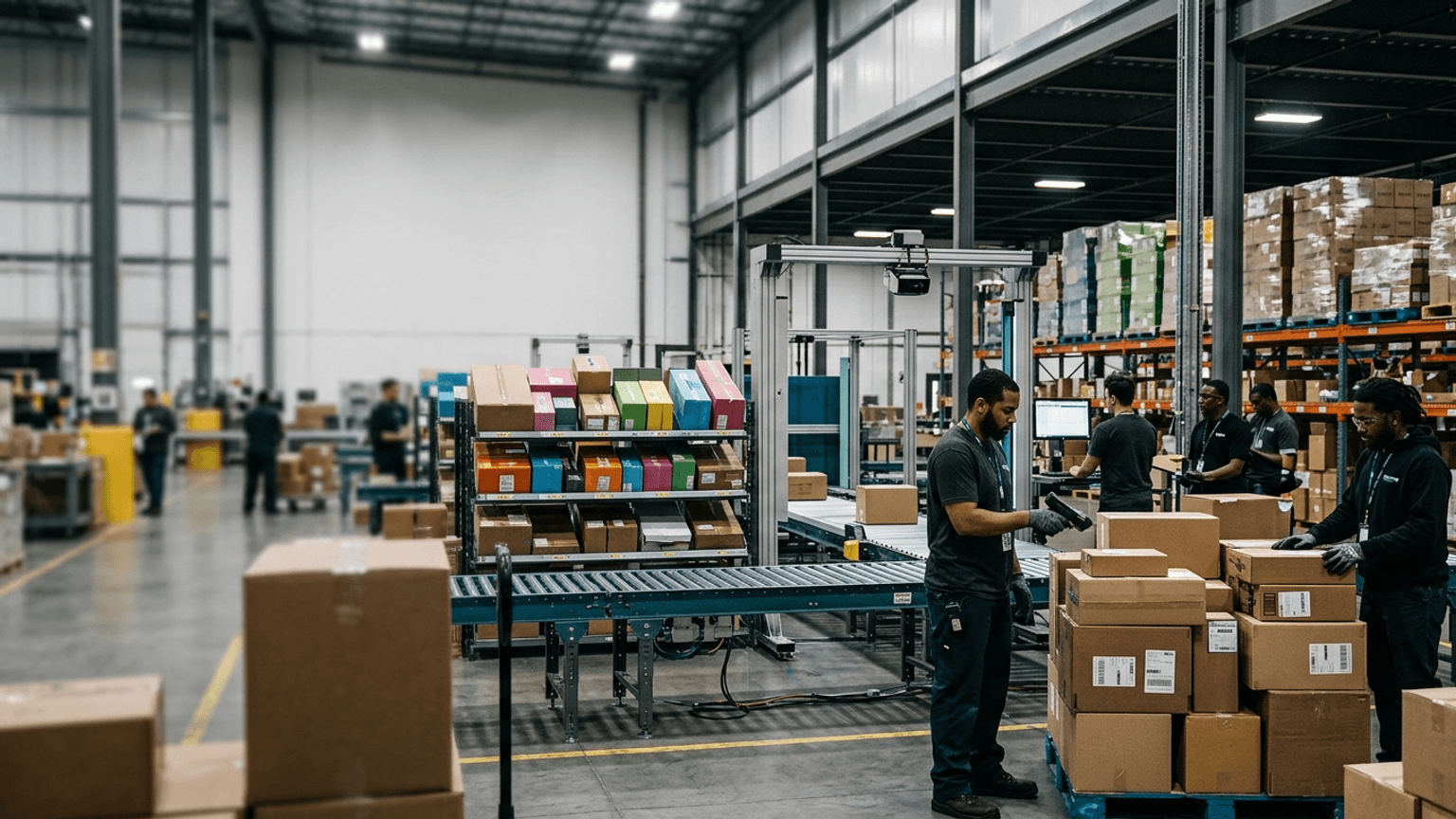

Dimensioning System Implementation Timeline: What Warehouse Buyers Should Plan Before Go-Live

A dimensioning system implementation timeline should be planned before the purchase order is approved, not after the equipment arrives on the dock.

The hardware may be straightforward. The implementation is where the project either becomes a working warehouse process or another station people work around. Buyers need to coordinate site readiness, data ownership, WMS or TMS integration, operator training, certification needs, exception rules, and first-month support.

The useful question is not "How fast can we install a dimensioner?" The better question is: what has to be true on go-live day for accurate dimensions, weight, images, and shipment identifiers to reach the right business decision without adding manual work?

Here is a practical timeline warehouse buyers can use to plan the work.

Week 0: define the first production workflow

Implementation starts with scope. A dimensioning system can support parcel manifesting, pallet measurement, LTL freight audit, inbound item profiling, customer billing, returns, cartonization, and shipment proof. Those workflows may all matter eventually, but they should not all be treated as day-one scope.

Define the first production workflow in one plain sentence:

"We will capture parcel dimensions and weight at manifest before label creation."

Or:

"We will capture pallet dimensions, weight, photos, and license plate data before customer billing and carrier tender."

That sentence drives the rest of the implementation plan. It tells the team where the system belongs, which operators need training, which identifiers must be scanned, which downstream systems need data, and which exceptions must be handled before go-live.

If the team has not already done a formal evaluation, run a focused dimensioning system pilot first. A pilot proves whether the workflow creates value. The implementation timeline turns that proof into a repeatable process.

Weeks 1-2: confirm site readiness before equipment ships

Site readiness sounds basic, but it is where many dimensioning projects lose time.

Before hardware ships, confirm:

• floor space and traffic clearance around the station
• forklift, pallet jack, conveyor, or cart movement near the measurement point
• electrical requirements and outlet placement
• network access, firewall rules, and wireless reliability if used
• lighting conditions, shadows, glare, and camera line of sight
• scale placement, leveling, and calibration needs
• mounting, bollards, safety markings, and operator access
• workstation, scanner, printer, monitor, and peripheral requirements
• environmental factors such as dust, vibration, temperature, and dock-door exposure

For parcel workflows, station ergonomics matter. Operators should not have to lift awkward cartons twice, rotate packages unnecessarily, or walk to a separate screen for every exception.

For pallet and freight workflows, traffic flow matters even more. If the dimensioner blocks dock movement or forces forklifts into awkward turns, adoption will suffer no matter how accurate the measurements are.

This is also the right time to confirm whether the workflow needs certified measurement. If measurements affect customer billing, carrier charges, or legal-for-trade use, review legal-for-trade dimensioning requirements before locking the installation plan.

Weeks 2-4: map the data path in detail

A dimensioning system is valuable only when the data reaches the right record at the right time.

Map each required data element:

• order, shipment, tracking number, license plate, pallet ID, or item identifier
• length, width, height, and weight
• image or photo proof when needed
• operator, station, timestamp, and measurement status
• exception reason codes
• customer, carrier, service level, or billing account
• destination system and source-of-truth rules

Then decide when the data must arrive. That timing is different by workflow.

For parcel manifesting, dimensions and weight may need to update before rating, label creation, or manifest close. For pallet billing, records may need to update before customer invoice creation. For freight audit, images and measurements may need to be searchable later by shipment, customer, carrier, bill of lading, or invoice.

Do not let "integration" stay vague. Write down the trigger, payload, field mapping, error handling, retry logic, ownership, and fallback process. The dimensioning system integration checklist is useful here because it forces buyers to separate measurement capture from operational data flow.

Weeks 4-5: write exception rules before testing

Clean shipments rarely break implementation. Exceptions do.

Before operational testing, define what operators should do when:

• the barcode will not scan
• a shipment has multiple labels
• a carton is damaged or bulging
• freight is outside the measurement range
• a pallet has overhang, loose wrap, or uneven edges
• the scale or camera fails a check
• the WMS record does not match the physical shipment
• dimensions conflict with expected item master data
• an operator needs to remeasure
• the network or downstream system is unavailable

Each exception needs a clear action, not just a supervisor escalation. Some should be remeasured. Some should move to an audit lane. Some should require a photo. Some should block shipment. Some should allow a controlled bypass with a reason code.

This is where implementation teams often uncover hidden ownership gaps. Operations may own the station, IT may own the integration, finance may own billing rules, transportation may own carrier dispute evidence, and customer success may own 3PL billing questions. Assign owners before go-live pressure makes every exception urgent.

For broader process design, see warehouse exception management. Dimensioning exceptions often touch money, proof, and shipment timing, so they need more control than a note in a spreadsheet.

Weeks 5-6: run operational acceptance testing

Acceptance testing should prove the process, not only the device.

Use real shipments from the workflow that will go live. Include normal volume and the edge cases that usually create rework. Test:

• measurement accuracy against expected tolerances
• scan sequence and operator prompts
• station ergonomics and traffic flow
• integrated scale behavior
• image capture and retrieval
• WMS, TMS, shipping, billing, or audit updates
• duplicate scans and remeasurements
• failed scans, oversize freight, and system downtime
• user permissions and edit controls
• report completeness and exception visibility

The test should answer a simple operational question: can trained operators run this process during a normal shift without creating side work?

If the answer is no, fix the process before go-live. Do not rely on launch week heroics. A dimensioning project that needs constant supervisor intervention is not ready for production.

For buyer teams comparing multiple station types, static vs dynamic dimensioning can help confirm whether the chosen setup still matches the actual throughput and handling pattern.

Week 6: train by role, not by feature list

Training should match how each team uses the dimensioning data.

Operators need to know:

• when to measure
• what to scan first
• how to place the carton, parcel, pallet, or freight
• how to read pass, fail, and exception prompts
• when to remeasure
• when a controlled bypass is allowed
• how to keep the station clear and ready

Supervisors need to know:

• how to review exceptions
• how to spot adoption problems
• how to interpret throughput and error trends
• who owns hardware, software, integration, and process issues

Finance, transportation, or customer billing teams need to know:

• where measurement records live
• how to retrieve proof
• which record is the source of truth
• how the data supports invoices, carrier disputes, or customer questions

IT needs to know:

• integration monitoring points
• retry and failure handling
• access control
• support escalation paths
• planned maintenance windows

Training by role keeps the project grounded. The goal is not for everyone to know every feature. The goal is for each person to know how the new process changes their work.

Go-live: start narrow, watch closely

A controlled go-live is usually better than a dramatic full rollout.

Start with the workflow, station, shift, or customer group that matches the tested scope. Monitor the first days closely:

• percentage of shipments measured successfully
• incomplete records
• remeasurement rate
• bypass frequency and reason codes
• operator cycle time
• integration failures
• image capture gaps
• carrier adjustment trends
• customer billing questions
• support tickets by root cause

Do not measure only volume. A station can process shipments while quietly creating bad data. Watch data completeness and exception quality as carefully as throughput.

Daily reviews during the first week are useful. Keep them short and practical. What slowed operators down? Which exceptions repeated? Which records did finance or transportation need but could not find? Which training point was missed? Which integration error needs a permanent fix?

First 30 days: prove control, then expand

The first month should convert go-live learning into operating discipline.

By day 30, the team should know:

• whether the workflow is stable enough to expand
• which exception reasons are most common
• whether operators trust the system
• whether data reaches downstream systems on time
• whether support ownership is clear
• whether carrier, billing, audit, or customer records improved
• whether the business case assumptions still hold

If the first workflow is stable, define the next phase. That may be another shift, another station, another facility, pallet workflows after parcel workflows, or billing evidence after operational measurement.

If the first workflow is not stable, avoid expanding noise. Fix the root cause first: placement, training, integration timing, exception rules, hardware fit, or ownership.

A good implementation timeline is not measured only by installation speed. It is measured by how quickly the warehouse gets trustworthy dimensions into daily decisions without creating manual cleanup somewhere else.

A practical implementation plan protects the ROI

Warehouse buyers often focus on device capability, but implementation quality determines whether the value shows up.

Plan the go-live workflow, prepare the site, map the data path, write exception rules, test with real shipments, train by role, and monitor the first month with operational discipline. That is how a dimensioning system moves from approved project to working process.

Sizelabs helps warehouse teams implement dimensioning around the decisions that matter: manifest accuracy, pallet and freight evidence, billing control, shipment proof, and operational data quality. If you are planning a rollout, start with the workflow where measurement data must change the decision on day one, then build the implementation timeline around that moment.
