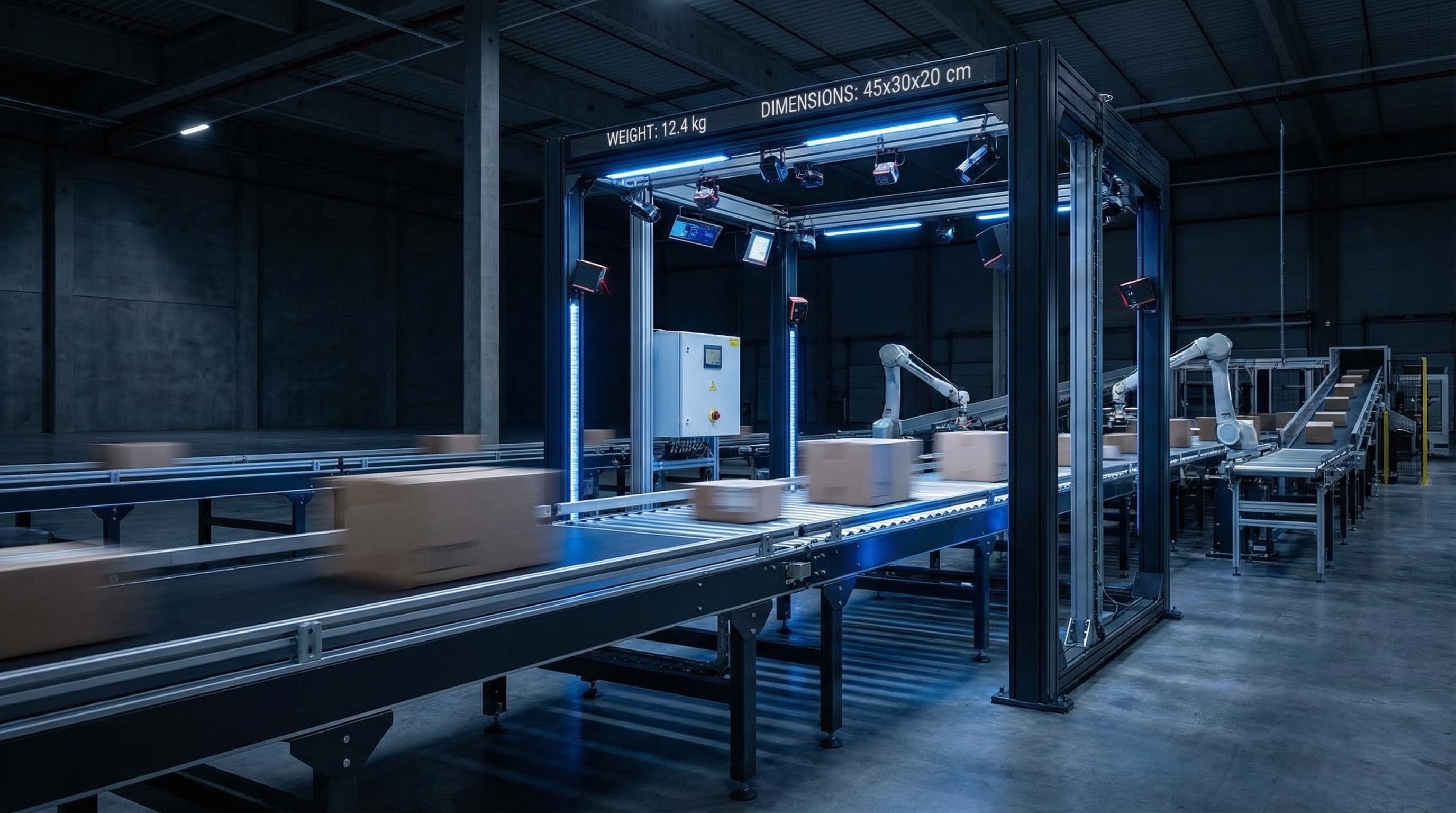

Complete Guide to Conveyor Weight Capturing Automation

In high-volume warehouse operations, manual weight and dimension capture creates a bottleneck that limits throughput and introduces errors. Conveyor weight capturing automation solves this by measuring packages in motion—no operator intervention required.

Conveyor weight capturing automation integrates weighing scales, dimensional scanners, and barcode readers directly into conveyor systems. Packages move through the capture zone while the system records weight, dimensions, photos, and tracking data automatically. Throughput and accuracy are system- and product-specific: require a pilot using your actual conveyor speed, gaps, package mix, labels, and exception conditions.

Here's how conveyor weight capturing automation works, when it makes sense, and how to implement it.

What Is Conveyor Weight Capturing Automation?

Conveyor weight capturing automation is the integration of measurement systems into conveyor lines to capture package data in motion. A typical system includes:

In-motion scale: Weighs packages while moving on the conveyor (no stop required)
Dimensional scanner: Captures length, width, and height using lasers, cameras, or AI vision
Barcode reader: Scans tracking labels for data association
Control system: Coordinates capture timing, data validation, and system integration

As packages move through the capture zone, the system triggers measurements automatically. Weight, dimensions, and barcode data flow to the WMS in real time. The RFP should state the tested speed range and minimum package gap instead of assuming a generic conveyor benchmark.

How Conveyor Weight Capturing Automation Works

The basic workflow:

1. Package enters capture zone → Photoelectric sensor detects package presence and triggers measurement sequence
2. In-motion scale captures weight → Load cells measure weight while the package is moving; accepted tolerance must come from the use case, device certificate, and site test.
3. Dimensional scanner captures size → Lasers, cameras, or other sensors measure L×W×H within the vendor's validated operating envelope.
4. Barcode reader scans label → Associates measurements with tracking number
5. Data validation → System checks for errors (e.g., missing barcode, out-of-range dimensions)
6. Data transmission → Measurements push to WMS/TMS via API or file transfer
7. Package continues → Conveyor keeps moving; no stop, no queue

Total capture time: under 2 seconds per package. Conveyor never stops.

Types of Conveyor Weight Capturing Systems

Conveyor automation systems vary by integration complexity and measurement technology:

Standalone In-Motion Scales

Basic conveyor weight capturing automation. Scale section integrates into existing conveyor. Captures weight only (no dimensions).

Best for:

• Operations that only need weight data
• Existing dimensioning handled separately
• Budget-conscious implementations

Pros: Lower cost, simple integration
Cons: Weight-only (no dimensions), doesn't solve DIM weight billing needs

Integrated Dimensioning + Weighing Systems

Complete conveyor weight capturing automation with integrated scale and dimensional scanner in a single capture zone.

Best for:

• High-volume fulfillment and sortation
• Operations shipping via DIM weight carriers (FedEx, UPS, USPS)
• 3PLs billing clients based on dimensional weight

Pros: Single capture point, complete data, highest throughput
Cons: Higher cost, more complex integration

Modular Systems

Separate scale and dimensioning modules that can be placed at different conveyor points.

Best for:

• Retrofitting existing conveyor lines
• Phased implementation (add weight first, dimensions later)
• Operations with space constraints

Pros: Flexible placement, easier to fit existing layouts
Cons: Requires synchronization between capture points, data association complexity

Benefits of Conveyor Weight Capturing Automation

Automating weight and dimension capture on conveyors delivers measurable operational improvements:

Throughput gains: Manual measurement processes 150-300 packages/hour (operator-dependent). Conveyor weight capturing automation processes 600-1,200+/hour with zero operator involvement. For operations above 1,500 packages/day, automation eliminates the measurement bottleneck entirely.

Labor savings: A warehouse operator measuring packages manually spends 45-65 seconds per package (measurement + data entry). At 1,000 packages/day, that's 12+ labor hours daily—roughly $216/day at $18/hour fully loaded. Conveyor automation recovers this labor for higher-value tasks.

Accuracy improvement: Manual data entry introduces 1-3% error rates. Conveyor systems with NTEP-certified scales and dimensional scanners operate at under 0.1% error rates. Fewer errors = fewer carrier billing disputes and chargebacks.

Audit trail: Automated systems capture timestamped photos, weights, and dimensions for every package. When carriers challenge declared dimensions, you have defensible data.

Scalability: Manual measurement doesn't scale linearly. Doubling volume means hiring, training, and supervision overhead. Conveyor automation handles volume increases by simply running more hours.

When Conveyor Weight Capturing Automation Makes Sense

Not every operation needs automated conveyor measurement. It makes sense when:

High daily volume: 1,500+ packages/day is the typical breakeven point. Below that, static dimensioning systems may offer better ROI.

Existing conveyor infrastructure: If you already have conveyors for sortation or packing, integration is straightforward. If you don't, the cost of installing conveyors + automation may not justify ROI.

DIM weight billing exposure: If you ship via FedEx, UPS, or USPS (all use DIM weight pricing), accurate dimensional data directly impacts shipping costs and carrier compliance.

Multi-client 3PL operations: Automated measurement provides client-specific dimensional data for accurate billing and prevents disputes.

Speed-sensitive fulfillment: E-commerce operations with same-day or next-day SLAs can't afford measurement bottlenecks.

For operations under 1,000 packages/day or without conveyor systems, static package sizers often deliver better ROI.

Integration with Warehouse Systems

Conveyor weight capturing automation only delivers value when data flows to downstream systems automatically:

WMS integration: Measurement data must push to your WMS in real time. Look for:

• Pre-built connectors for major WMS platforms (SAP, Oracle, Manhattan, etc.)
• REST API for custom integrations
• Webhook support for event-driven workflows

Carrier API integration: Dimension and weight data should flow to carrier systems for rate calculation and label generation. Automate this step to prevent manual re-entry.

Sortation system integration: If you run automated sortation, dimensional data can inform routing decisions (e.g., oversized items to manual handling).

Billing systems: For 3PLs, dimensional data feeds client billing. Integration ensures accuracy and reduces billing disputes.

Budget 10-20% of hardware cost for integration if you need custom development. Systems with strong API documentation and vendor integration support reduce this cost.

ROI Calculation for Conveyor Automation

Typical ROI factors:

Cost inputs:

• Conveyor scale + dimensioner: $15,000-$50,000
• Conveyor modifications (if needed): $5,000-$20,000
• Integration/software: $3,000-$10,000
• Annual maintenance/subscription: $5,000-$12,000

Savings:

• Labor recovery: 10+ hours/day × $18/hour × 260 days = $46,800/year
• Error reduction: 1% error rate × 1,000 packages/day × 50% trigger $10 adjustment × 260 days = $13,000/year
• Throughput gains: Ability to handle volume spikes without adding headcount

Most high-volume operations (1,500+ packages/day) see payback within 6-12 months.

Use our ROI calculator to model your specific scenario.

Implementation Considerations

When planning conveyor weight capturing automation:

Space requirements: In-motion systems typically need 6-12 feet of conveyor length for the capture zone (scale, dimensioner, barcode reader). Measure your available space before selecting equipment.

Conveyor compatibility: Not all conveyors work with all measurement systems. Belt conveyors, roller conveyors, and sortation conveyors have different integration requirements. Verify compatibility with your vendor.

Speed matching: Conveyor speed and package spacing affect capture accuracy. Systems rated for 300 FPM (feet per minute) won't perform well on 400 FPM conveyors. Match system specs to your conveyor speed.

Power and connectivity: In-motion systems need power drops and network connectivity. Plan electrical and IT infrastructure before installation.

Calibration and certification: If using dimensions/weight for billing, NTEP certification is required. Annual recertification is mandatory. Verify vendor handles this or budget for third-party calibration.

Training: Operators don't interact with the system daily, but maintenance and troubleshooting require training. Plan 4-8 hours for staff onboarding.

Vendor Selection Criteria

When evaluating conveyor weight capturing automation vendors:

Technical specs:

• Weight accuracy (±lbs)
• Dimensional accuracy (±inches)
• Max throughput (packages/hour)
• Conveyor speed compatibility (FPM)
• Package size range (min/max dimensions)
• NTEP certification (required for billing)

Integration:

• WMS/TMS integration options
• API availability and documentation
• Real-time data push vs polling
• Photo capture and storage

Support:

• Installation services included?
• Training provided?
• Maintenance/calibration SLA
• Technical support response time

Commercial:

• Upfront cost vs subscription model
• What's included in monthly fee?
• Warranty terms
• Upgrade path (if adding features later)

Common Pitfalls to Avoid

Underestimating integration complexity: Hardware is the easy part. Data integration with WMS, carrier APIs, and billing systems takes time. Budget for this.

Ignoring certification requirements: If you use dimensional data for invoicing or carrier billing, NTEP certification isn't optional. Non-certified systems create liability.

Skipping conveyor compatibility checks: Not all dimensioners work with all conveyor types. Verify before purchasing.

Overlooking maintenance: In-motion scales and scanners require periodic calibration. If vendor doesn't handle this, budget for third-party service.

Not planning for peak volume: Size the system for peak capacity, not average. Undersized systems create the same bottleneck you're trying to eliminate.

Is Conveyor Weight Capturing Automation Right for You?

Conveyor weight capturing automation is worth evaluating when:

✅ Parcel volume and peak-rate requirements justify a continuous-flow station ✅ You have existing conveyor infrastructure
✅ Manual measurement is your throughput bottleneck
✅ You ship via DIM weight carriers (FedEx, UPS, USPS)
✅ Labor costs justify the capital investment

It is less likely to be the first choice when:

❌ Current volume and labor savings do not support the conveyor and integration cost ❌ You don't have conveyors (and can't justify installing them)
❌ Packages are irregular/soft (better suited for static AI-powered systems)
❌ Budget constraints prevent 6-12 month payback

For operations in the middle, run the numbers using measured labor, peak throughput, exception cost, maintenance, integration, and downtime assumptions. Compare that result with a static station before selecting the architecture.

---

If you're ready to explore conveyor integration, use the Sizelabs Wilkins Move Dimensioner page as a starting point, then verify the exact configuration, certification scope, integration, tested rate, and acceptance criteria against your operation.

Primary sources to verify specifications

• NIST Handbook 44, current edition — consult the applicable automatic weighing, belt-conveyor scale, and multiple-dimension measuring device sections for the actual commercial use case.
• NCWM NTEP certificate database — confirm any certification claim against the exact model and application before it enters the RFP or acceptance plan.
