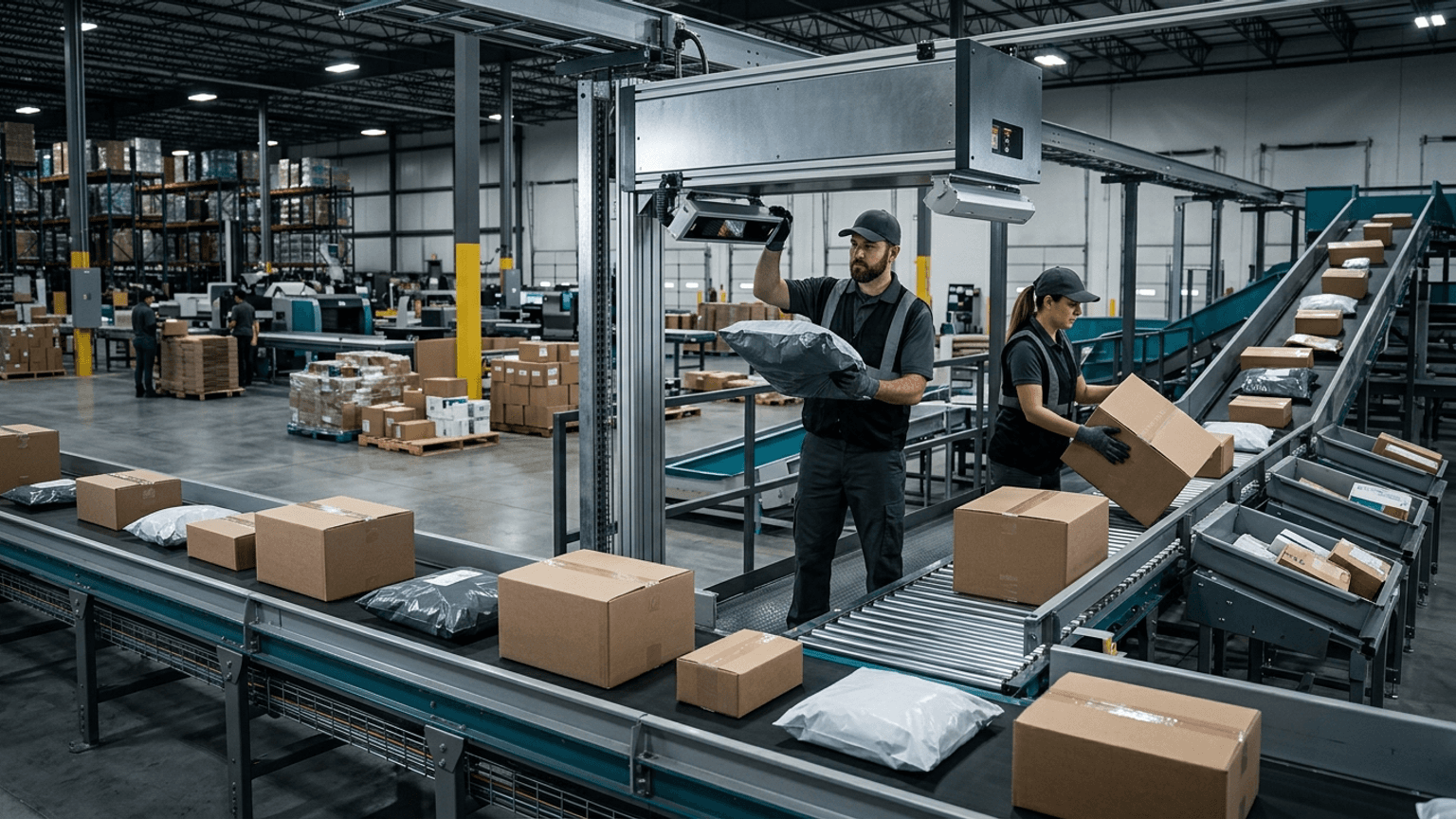

Parcel Dimensioner Buying Criteria for Mixed Carton and Polybag Workflows

A parcel dimensioner is easy to evaluate when every package is a clean rectangular carton. Most shipping operations are not that tidy.

The harder buying question is whether the system can handle the mix that actually reaches the pack line or manifest station: small cartons, oversized cartons, polybags, padded mailers, reworked packages, crushed corners, label problems, and near-threshold shipments where one inch can change the billable weight.

For warehouse buyers, the right parcel dimensioner is not just a fast measuring device. It is a station control that captures trusted dimensions, weight, identifiers, and exception context before shipping data becomes final.

Here is how to evaluate one for mixed carton and polybag workflows.

Start with the package mix, not the device spec

Most vendor comparisons begin with accuracy, speed, and footprint. Those matter, but they only make sense after you define the parcel profiles the station must process.

Build a simple package mix from recent shipping history:

• standard cartons by size family
• small cartons that are easy to misread or misplace on the station
• large cartons near carrier surcharge thresholds
• polybags, padded mailers, and soft-sided packages
• tubes or narrow items
• crushed, bulging, or reworked packages
• multi-carton orders that need package-count discipline
• high-value shipments that may need stronger proof
• customer or carrier lanes with frequent adjustments

Then separate daily average volume from peak-hour volume. A parcel dimensioner that feels fine at 600 packages per day may become a bottleneck during a promotion, carrier cutoff, or Monday backlog.

The goal is not to create a perfect engineering model. It is to prevent the team from buying for the cleanest 70% of the flow and leaving operators to improvise around the hardest 30%.

Decide what the parcel dimensioner must prove

Different operations need parcel dimensions for different decisions.

Common uses include:

• Carrier rating: updating dimensions and weight before the shipment is rated or manifested.
• Manifest audit: verifying that the package, label, dimensions, weight, and service level match before pickup.
• Customer billing: supporting a 3PL invoice or storage/handling charge.
• Cartonization feedback: showing where pack logic or carton selection is creating avoidable dimensional weight.
• Dispute evidence: keeping measurement data, photo proof, timestamp, and shipment identifier connected.
• Master data cleanup: finding SKUs or package profiles where expected dimensions no longer match reality.

The buying criteria should match the decision. If the parcel dimensioner feeds live carrier rating, integration timing and identifier capture are critical. If it supports billing evidence, image quality and audit trail matter more. If it supports packaging improvement, reporting by SKU, carton type, customer, or pack station becomes more important.

For a broader station-level workflow, pair this evaluation with the parcel dimensioning system guide for manifest and audit stations.

Test polybags and soft packages deliberately

Polybags are where many neat demo assumptions break.

Soft packages can wrinkle, sag, fold, or change shape depending on how the operator places them. A padded mailer may have a label on one side and a bulge on the other. Apparel, returns, and lightweight e-commerce items often move through the same station as rigid cartons, but they do not behave like rigid cartons.

During evaluation, test:

• flat polybags
• overfilled polybags
• partially folded mailers
• padded envelopes
• bags with loose material inside
• labels placed close to seams or curves
• packages near a dimensional weight threshold

Do not only ask whether the system can measure them. Ask what the operator must do to get a reliable result. If the answer requires repeated repositioning, manual overrides, or supervisor judgment, that cost belongs in the buying decision.

Also define which soft-package measurements are allowed to update shipping records automatically and which should be flagged for review. Some workflows can accept a best operational measurement. Others need stricter handling when billing or carrier disputes are involved.

Measure station throughput as a full cycle

Dimensioning speed is not the same as station throughput.

For a realistic test, measure the full operator cycle:

1. Package arrives at the station.
2. The identifier is scanned or captured.
3. Dimensions and weight are captured.
4. The operator confirms or handles an exception.
5. The record updates the WMS, TMS, shipping platform, or audit queue.
6. The package moves to the next lane.

Track clean parcels separately from exception parcels. The clean-item cycle may look excellent while the station still creates delay whenever a barcode fails, a polybag needs review, the package is oversized, or the shipping platform rejects an update.

Useful questions include:

• Can one operator keep the station moving during peak hour?
• Does the screen make the next action obvious?
• How quickly can a package be remeasured?
• What happens when weight and dimensions disagree with expected values?
• Does the station create a queue before carrier cutoff?
• Can supervisors see unresolved exceptions without walking the line?

If throughput is the main concern, the buyer should also compare static parcel stations with conveyor or in-motion options. The in-motion dimensioning system guide explains where continuous flow makes sense and where an audit station is still the better control point.

Require clean integration, not another spreadsheet

A parcel dimensioner only creates value if the data reaches the record that will use it.

At minimum, verify that each shipment record can receive:

• length, width, and height
• actual weight when included in the workflow
• carton, package, order, shipment, or tracking identifier
• timestamp and station
• operator or capture source when needed
• photo or evidence link when the process requires proof
• exception status and reason code
• manual correction or remeasurement flag

Then test bad paths. What happens when the shipment ID is missing? What happens when the shipping platform already has a label? What happens when a package is remeasured after the first label print? What happens when dimensions should be held for review rather than pushed downstream?

These details matter because many warehouses already know how to collect dimensions. The harder problem is preventing stale, disconnected, or manually rekeyed dimensions from becoming the source of carrier adjustments and billing questions.

For integration planning, use the WMS dimensioning integration playbook before committing to a data flow.

Score exceptions as part of the buying decision

Mixed parcel operations need an exception workflow, not just a measurement result.

Include these scenarios in the pilot:

• unreadable or missing barcode
• duplicate scan
• wrong package tied to the wrong shipment
• carton reprint or relabel
• damaged or crushed package
• polybag that does not sit cleanly
• package outside expected size range
• weight variance
• manual correction
• failed downstream update
• customer or carrier hold

For each scenario, score whether the workflow shows:

• the reason the package stopped
• who owns the next action
• whether the package can keep moving physically
• whether data is held, updated, or rejected
• how the final decision is visible later

This is where a cheap station can become expensive. If every exception turns into a supervisor interruption, the parcel dimensioner may improve measurement quality while making the shipping lane harder to run.

Connect the scorecard to ROI

The business case should not rely only on labor minutes saved.

For mixed carton and polybag workflows, include:

• fewer carrier adjustments from stale or missing dimensions
• less manual measuring and keying at pack or audit
• faster manifest close because shipment data is cleaner
• fewer rework loops from wrong labels, wrong weights, or wrong service decisions
• better packaging feedback when carton choice drives dimensional weight
• stronger evidence for customer or carrier disputes
• fewer exceptions released without review

The value depends on volume, carrier rules, dispute frequency, labor cost, and how often dimensions influence a commercial decision. The warehouse automation ROI guide can help frame the financial model, but the best inputs will come from your own adjustment history and station observations.

What to ask vendors before the pilot

Before selecting a parcel dimensioner, ask vendors to answer practical workflow questions:

• Which package types are included in the quoted configuration?
• What measurement tolerance applies to cartons, bags, and irregular packages?
• How are soft packages handled when the shape changes during placement?
• Can the station capture weight, images, identifiers, and dimensions in one workflow?
• Which systems can receive updates automatically?
• What happens when a downstream system rejects the update?
• Can exceptions be reason-coded and reviewed later?
• What reports show adjustments, remeasurements, and station performance?
• What support and calibration routines keep the station trusted after go-live?
• What will the pilot prove, and what would count as a failed test?

The answers should be specific enough that operations, IT, transportation, and finance can compare the proposal against real work instead of demo conditions.

Buy for the workflow your operators actually run

A parcel dimensioner should make the shipping workflow more controlled, not more fragile.

For mixed carton and polybag operations, the strongest buying process starts with real package profiles, tests exceptions on purpose, verifies integration timing, and scores whether operators can keep freight moving without losing proof.

Sizelabs' Wilkins Parcel Dimensioner and Operator AI are built for teams that need parcel data connected to the workflow, not trapped at the station. If your team is still deciding where the dimensioner belongs, the dimensioner workflow finder can help map the right capture point before you ask for a quote.
